The

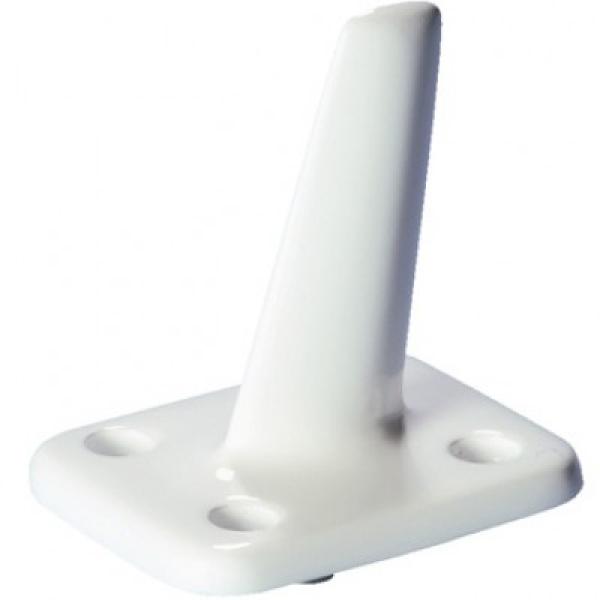

CI-305 is a miniature, high-speed, DME transponder antenna. With a height less than 2.75 inches, the CI-305 features a very low drag frontal profile. This strong and lightweight antenna has a four-hole external mounting pattern and operates on 960 MHz to 1225 MHz.
Features:
- BNC connector
- Four-hole mount pattern
- 960 MHz to 1225 MHz frequency response
Weight:
0.3 lb
Height:
2.75 in
Frequency:
960 MHz to 1225 MHz
VSWR:
1.8:1
Polarization:
Vertical
Radiation pattern:
Equiv. 1/4 wave stub
Impedance:
50Ω
RF power:
Kw (peak)
Finish:
White polyurethane enamel
Connector:
BNC (female)
Altitude:
45,000 ft
FAA TSO:
C66b, C74c
RTCA Env.:
DO-160A
