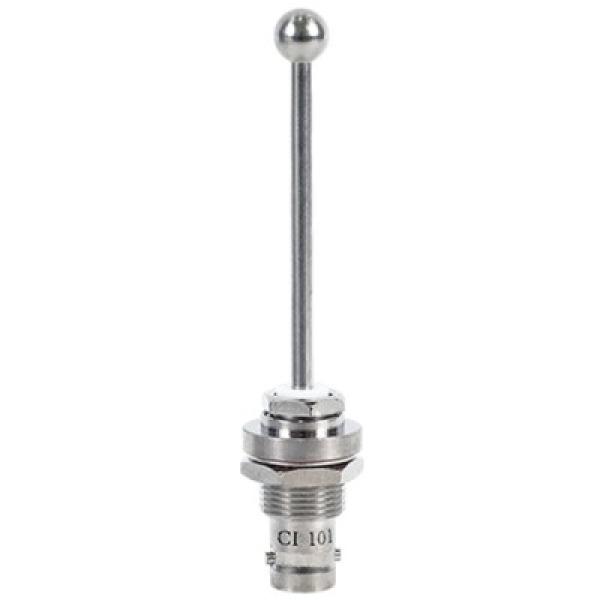

The CI 101 is a top loaded stub, monopole, transponder antenna with a mechanically captivated radiator machined from solid brass for impact resistance. Contact power is made from beryllium copper, and metallic parts are plated with bright nickel for corrosion protection.
The CI-101 mounts through a single 0.6-inch diameter hole.
- FAA TSO authorized
- Frequencies covered: 1030-1090 MHz
Weight:
0.06 lb
Height:
3.33 in
Frequency:
1030 MHz to 1090 MHz
VSWR:
1.5:1 with return loss 14 dB
Polarization:
Vertical
Radiation pattern:
Equivalent to 1/4 inch wave stub
Impedance:
50Ω
Resistance DC:
Open circuit
RF power:
1 Kw
Finish:
Tin-nickel alloy
Altitude:
30,000 ft
FAA TSO:
C74c
RTCA Env.:
DO-1387
