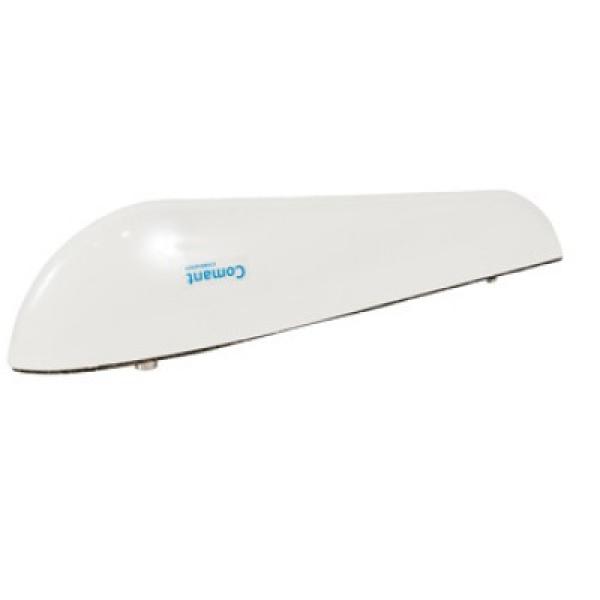

The CI 102 marker beacon antenna is designed for use with modern, high sensitivity marker beacon receivers. Small and lightweight, this marker beacon features 4-hole internal mounting for simple installation. The antenna assembly is enclosed in an injection molded radome which is impervious to the tough environments typical of the underside of an aircraft.
- DC grounded to minimize accumulation of precipitation static
- Skydrol and rain erosion resistant
- Designed for single and twin engine piston aircraft
- 4 hole internal mount
- Airspeed 400 Knots
- 75 MHz
- Includes gasket C10208
Weight:
0.6 lb
Height:
2.15 in
Frequency:
75 MHz
VSWR:
1.5:1 Maximum / Return Loss -13.98 dB
Polarization:
Parallel to mounting plane
Radiation Pattern:
E-Field parallel with flight direction
Impedance RF:
50Ω
Resistance DC:
DC grounded
Power RF:
Receive only
Finish:
Valox Polyester
Connector:
BNC (female)
Temperature:
-55 to 85 C
Altitude:
45,000 ft
FAA TSO:
C35d, Class A
RTCA MOPS:
DO 138, DO 143
RTCA Environmental:
DO-160A
Gasket:
C10208
