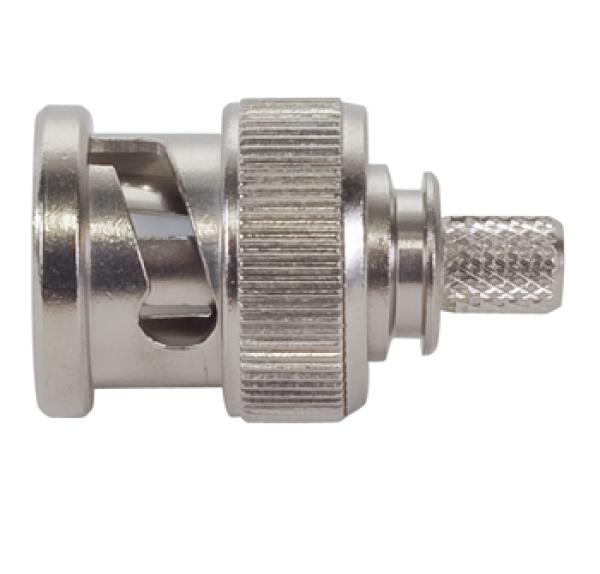

The 31-320RFX is a BNC straight Crimp Plug for RG-58 cable. This plug has a bayonet coupling mechanism, straight orientation, brass body/contact, and standard polarity.
- 50Ω Impedance
- 4GHz Maximum Frequency
- Nickel-plated Body
- Gold-plated Contact
- Delrin Insulator
Connector Type:
BNC Coaxial
Connector Body Style:
Straight Plug
Coaxial Termination:
Crimp
Impedance:
50ohm
Coaxial Cable Types:
Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303, RG-58, RG-58A, RG-58B, RG-58C
Contact Material:
Brass
Contact Plating:
Gold Plated
Frequency Max:
4GHz
Connector Mounting:
Cable Mount
Coupling Mechanism:
Bayonet
