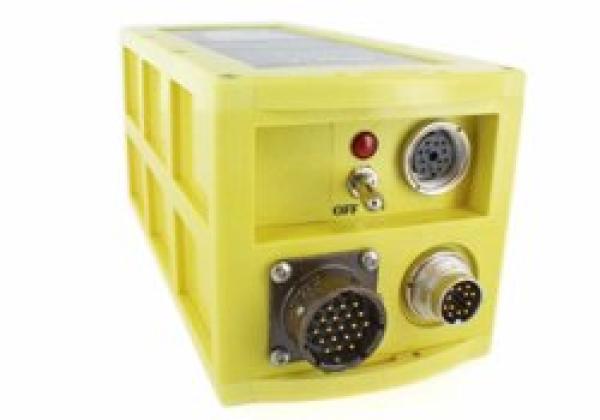

Kannad Assy, ELT-NAV Interface, CS144-A (for 406 AF)
Kannad Assy, ELT-NAV Interface, CS144-A (for 406 AF)
- Combines the aircraft identification (contained in the programming dongle) with the aircraft position to generate the appropriate long message
- Updates every minute an internal memory module that contains either the short or the long message
- To insert between ELT and the dongle
- Connected to the NAV equipment with RS232, RS422 or RS485 link (automatic transmission speed detection)
- Connected to the NAV equipment with ARINC 429 (Low or High speed) - For Model CS144-A ONLY
- NAV equipment must send ARINC 429 labels 310 and 311 - For Model CS144-A ONLY
- NAV equipment must send either NMEA 0183 or ARNAV A/B labels
- ELT-NAV Interface Kit (P/N S1825501-02) includes ELT-NAV interface unit (P/N S1825502-02) plus CS144 to ELT cable (P/N S1825503-02)
- Distance between ELT and CS144 must be less than 45cm
- The "Mounting Bracket, 1 Strap" (S1820511-01) must be ordered separately
- The use of a programming dongle is mandatory
